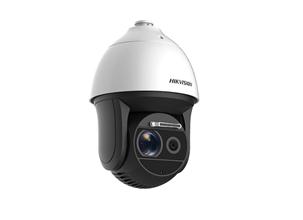

DS-2DF8836I5X-AEL(W)8MP 36× Network Laser Speed Dome

Hikvision
Add to wishlist
Compare

• 2/3” progressive scan CMOS sensor

• 4K 8MP(4096*2160)

• 36X Optical Zoom

• Smart Tracking

• Smart Detection

• 500m IR distance

• Optional wiper(-W)

• Hi-PoE / 24VAC power supply

• Support H.265+/H.265

Compare
Camera
Image Sensor: | 2/3″ progressive scan CMOS
Horizontal Resolution: | 4096×2160
Signal System: | PAL/NTSC
Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR
White Balance: | Auto / Manual
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
Smart defog: | Support
WDR: | DWDR
Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 24 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 7.5 mm to 270 mm, 36× Optical
Zoom Speed: | Approx.7.4s(Optical Wide-Tele)
Angle of View: | Horizontal field of view: 56.1° to 2.0° (wide-tele)
Vertical field of view: 33.4° to 1.1° (wide-tele)
Diagonal field of view: 62.9° to 2.3° (wide-tele)
Minimum Working Distance: | 10-1500mm(Wide-Tele)
Aperture Range: | F1.55~F4.8
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Pan Manual Speed: 0.1°~210°/s, Pan Preset Speed: 280°/s
Tilt Range: | -20°~90°(Auto Flip)
Tilt Speed: | Tilt Manual Speed: 0.1°~150°/s, Tilt Preset Speed: 250°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets per patrol
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Freeze Frame: | Support
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper: | Optional
Infrared
IR irradiation distance: | 500m
IR irradiation angle: | Adjustable by zoom
Alarm
Alarm Input: | 7 Inputs
Alarm Output: | 2
Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Main Stream: | 50Hz:25fps(4096×2160, 3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
60Hz:24fps(4096×2160), 30fps(3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: | Support
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: | OFF/Audio input/Audio output
No. of Simultaneous Users: | Up to 20 users
Three-Stream: | Support
Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +
General
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: | English
Power Supply: | High-PoE&24 VAC, Max.60W
Power Consumption: | 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: | IP66 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: | Φ266.6(mm)×435(mm)
Weight (approx.): | 8kg (approx.)
Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
