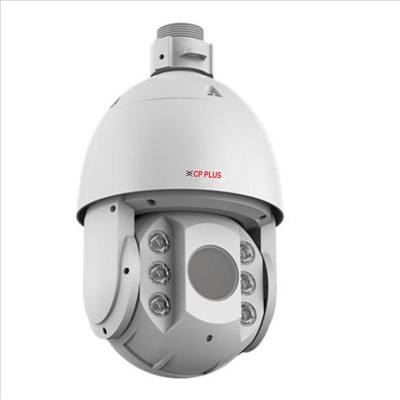

CP-UVP-2010L10 1 MP 20x HDCVI IR PTZ Camera

CP-UVP-2010L10 1 MP 20x HDCVI IR PTZ Camera

  • 1/2.8″ Exmor HQIS Pro Image sensor
  • Powerful 20x Optical and 16x Digital zoom
  • DWDR, Day/Night(ICR), Ultra DNR
  • Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 160°/s pan speed, 360° endless pan rotation
  • IR Range of 100 Mtr.
  • IP66
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

  • Image Sensor1/3″ Exmor HQIS Pro
  • Effective Pixels1280(H) x 960(V), 1.3Megapixels
  • Video Output1 channel BNC HDCVI high definition video output
  • S/N RatioMore than 50dB
  • Minimum IlluminationColor: 0.05Lux@F1.4, B/W: 0.005Lux@F1.4, 0Lux (IR on)
  • Focal Length4.7mm~94mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 54.1° ~ 3.2°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom20x
  • Digital Zoom16x
  • Pan Travel360° endless, Pan Speed: 0.1° ~ 160°/sec
  • Tilt Travel-15° ~ 90°, Tilt Speed: 0.1° ~60°/sec
  • Presets300
  • Preset SpeedPan:160° /s;Tilt: 80° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuo activation of Prese/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video Streaming25/30fps@720P
  • NetworkingRS485
  • ProtocolsPelco-P/D (Auto recognition)
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • Weight4.0kg
  • Power SourceAC24V/1.5A
  • Power Consumption15W, 24W(IR on, Heater on)
  • Optical Zoom20x
