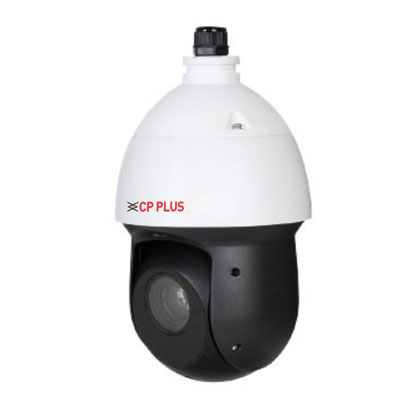

CP-UVP-D2520L10-D 2MP 25x HDCVI IR PTZ Camera – 100 Mtr.

CP-UVP-D2520L10-D 2MP 25x HDCVI IR PTZ Camera – 100 Mtr.

  • 1/2.8” 2MP CMOS Image sensor
  • Max. 25/30fps@1080P, 25/30/50/60fps@720P
  • Powerful 25x Optical and 16x Digital zoom
  • WDR(120dB), 3D DNR, Day/Night (ICR), BLC,HLC
  • Up to 300 presets, 8 auto scan, 8 tour, 8 auto pan, 5 pattern
  • IR Range of 100 Mtr.
  • Max 240°/s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

  • Image Sensor1/2.8” PS CMOS
  • Effective Pixels1920(H) x 1080(V), 2MP
  • Video Output1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
  • Focal Length4.8mm~120mm (25x Optical zoom)
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Close Focus Distance100mm~ 1000mm
  • Angle of ViewH: 59.2° ~ 2.4°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR(120dB)
  • Optical Zoom25x
  • Digital Zoom16x
  • Pan Travel0°~360° endless, Pan Speed: 0.1° ~ 200°/sec
  • Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Presets300
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Special FeaturesIR Range upto 100m, Up to 300 Presets, 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
  • Privacy MaskUp to 24 areas
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Audio Streaming1 channel In
  • Networking1 RS485
  • ProtocolsPelco-P/D (Auto recognition)
  • Alarm2/1 channel In/Out
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ160(mm) x 295(mm)
  • Weight3kg
  • Power SourceDC 12V/3A
  • Power Consumption13W, 20W (IR on)
