- Image Sensor1/3″ PS CMOS
- Minimum Illumination0.01Lux/F1.3, 0Lux IR on
- Effective Pixels2560×1440 , 4MP
- Shutter SpeedPAL: 1/4s~1/100,000s , NTSC: 1/3s~1/100,000s
- White BalanceAuto / Manual
- Lens2.7mm-13.5mm Motorized Lens
- AGC ControlAuto / Manual
- S/N RatioMore than 65dB
- Back Light Comp.BLC / HLC / WDR(120dB)
- Video Streaming25fps@4MP , 25/30fps@1080P , 25/30fps@720P
- Video Output1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
- ICRAuto (ICR) / Manual
- IRIR Range of 60 Mtr.
- No. of IR LEDs4pcs
- Operating Temperature-30°C~+60°C / Less than 90%RH
- Power Source12V DC ±25%
- Power ConsumptionMax 11.1W (12V DC, IR on)
- Weatherproof StandardIP67
- Dimension213.0mm x 90.4mm x 90.4mm
- Weight0.61 kg
4 MP, Analog HD Camera

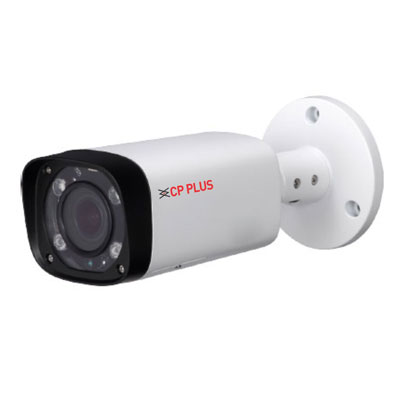

CP-UVC-TB40ZL6-D 4 MP WDR IR HDCVI Bullet Camera – 60 Mtr.
- 1/3″ 4MP PS CMOS Image Sensor
- Max. 25fps@4MP
- WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
- 2.7mm-13.5mm Motorized lens
- OSD Menu, control over coaxial cable, 2D/3D-DNR
- IR Range of 60 Mtrs., IP67
- HD and SD dual-output
