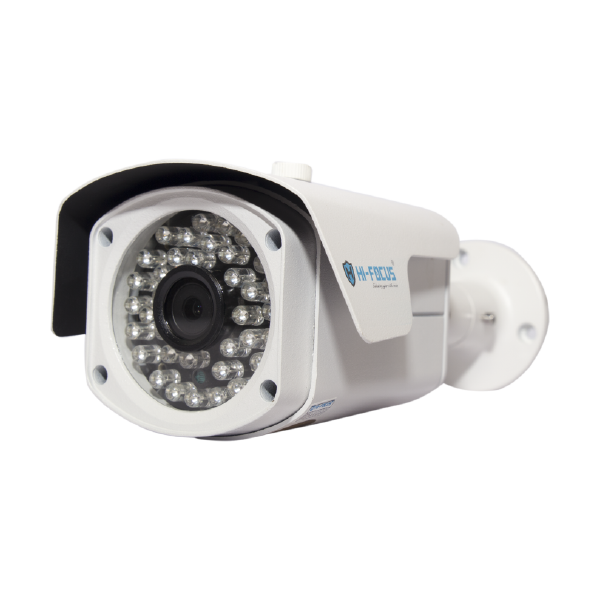

HC-CVI-T1100N3

HC-CVI-T1100N3

1/2.9″ 1.3 MP High Definition Image Sensor
25/30fps@960P
High Speed, Long Distance & Real Time Transmission
Day/Night (ICR), AWB, AGC, BLC
3.6/6mm Fixed Lens
Max. IR Range of 30m with 36 LEDs
12V DC ± 10%, Metal Housing

Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

Image Sensor

Resolution

Min.Illumination

Lens

Pixels

Electronic Shutter

Synchronization

Video Streaming

Video output

IR

Power Supply

Power Consumption

Working Environment

Ingress Protection

Transmission Distance

Dimensions

Weight

Certifications

1/2.9″ 1.3 MP High Definition Image Sensor

960P

0.01Lux@F1.2

3.6/6 mm

1280(H) x720(V)

1/50(1/60)-1/100,000sec

Internal

960P@25 fps

1-channel BNC HDCVI high definition video output

IR Range of 30m with 36 LEDs

DC12V±10%

Max 2.5W

-30°C~+60°C / Less than 95%RH (no condensation)

IP66

Over 500m via 75-3 coaxial cable

Φ85mm× 69mm

250 gms

CE, FCC, RoHs
