- Image Sensor1/2.8″ 2 Megapixel PS CMOS
- Minimum Illumination0.006Lux/F1.4 ( Color,1/3s,30IRE) 0.05Lux/F1.4 ( Color,1/30s,30IRE) 0Lux/F1.4 (IR on)
- Effective Pixels1920(H) x 1080(V)
- Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
- White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
- Lens5.3mm~64mm Motorized
- AGC ControlAuto/Manual
- Video CompressionH.265+/H.265/H.264+/H.264
- S/N RatioMore than 50 dB
- Back Light Comp.BLC / HLC / WDR(120dB)
- Video StreamingMain Stream: 1080P(1~50/60fps) , Sub Stream: D1(1~50/60fps) , Third Stream: 1080P(1~25/30fps)
- Resolution1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
- Digital Zoom16x
- Motion DetectionOff / On (4 Zone, Rectangle)
- ICRAuto(ICR)/Color/B/W
- ROIOff / On (4 Zone)
- Audio Input1 Ch.
- Audio Output1 Ch.
- Audio ComprerssionG.711a/ G.711Mu/ AAC/ G.726
- Alarm IN2 channel In: 5mA 5VDC
- Alarm Out1 channel Out: 300mA 12VDC
- Bit RateH.264: 24~9472Kbps , H.265: 14~5632Kbps
- ProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP, ONVIF, PSIA, CGI
- Smart DetectionTripwire, Intrusion, Object Abandoned/Missing, Face Detection
- User Account20 users
- Smart PhoneiPhone, iPad, Android Phone
- IRIR Range of 200 Mtr.
- Micro SDMicro SD, Max 128GB
- Operating Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
- Power SourceDC12V, PoE(802.3af)
- Power Consumption<11.5W
- Weatherproof StandardIP67
- Dimension273.2mm x95.0mm x 96.4mm
- Weight1.07Kg
2 MP, Network Camera

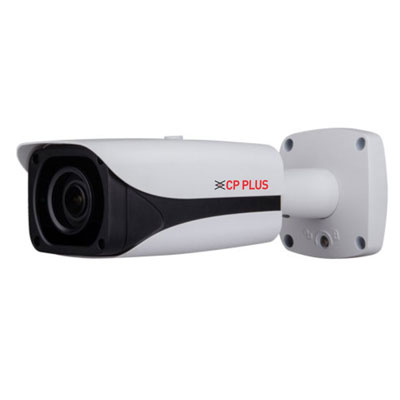

CP-UNC-TE21ZL20-VMD 2 MP Full HD WDR Network IR Bullet Camera – 200 Mtr.
- 1/2.8″ 2Megapixel PS CMOS Image Sensor
- H.265 and H.264 triple-stream encoding
- Max 50/60fps@1080(1920×1080)
- WDR(120dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
- IR Range of 200 Mtrs.
- 5.3mm ~64mm 12x zoom lens
- 2/1 Alarm in/out, 1/1 audio in/out
- Supports PoE, IP67, Micro SD Card
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
