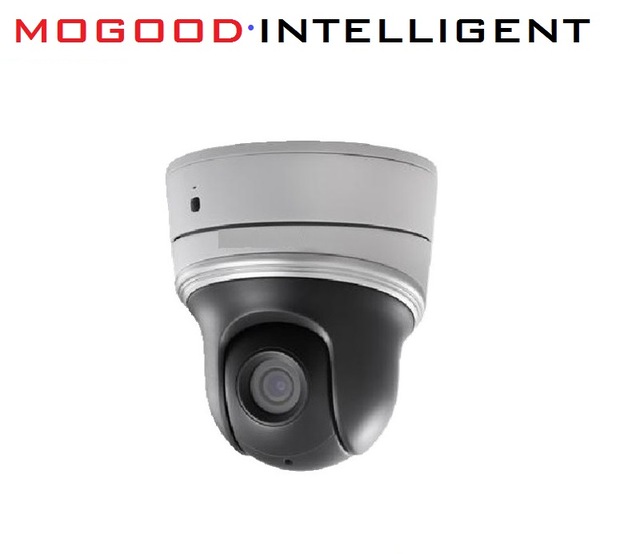

Hikvision DS-2DE2204IW-DE3 2MP Network IR 30m Mini PTZ Camera indoor

Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON)
Day & Night IR Cut Filter
Focus Mode Auto
Shutter Speed 1/1 to 1/10,000s
Digital Zoom 16×
White Balance Auto/manual/ATW (auto tracing white balance)/indoor/outdoor/daylight lamp/sodium
lamp
AGC Auto/Manual
Backlight Compensation Support
Wide Dynamic Range Support
DNR (Digital Noise
Reduction) Support
Privacy Mask 8 programmable privacy masks
Lens
Focal Length 2.8 to 12mm, 4×
Field of View 100° to 25° (wide-tele)
Working Distance 10 to 1500mm (wide-tele)
Zoom Speed Approx. 2s (optical lens, wide-tele)
Aperture Range F1.8 to F2.5
Smart
Smart Detection Intrusion detection, line crossing detection, audio exception detection, motion
detection, and video tampering detection
Smart Recording Edge storage, smart search in smart NVR, and VCA playback
Smart Image Enhancement HLC
Smart Encoding Low bitrate, and ROI (Region of Interest) encoding
Smart Alarm
Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal
login
Network
Stream Support three streams
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream 50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)
Three Stream
50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288);
60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Audio compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 users
User/Host Up to 32 users, 3 levels: Administrator, Operator, and User
Security Measures
User authentication (ID and PW), host authentication (MAC address), IP address
filtering, HTTPS encryption and IEEE 802.1x port-based network access control
Pan and Tilt
Movement Range Pan: 350°, Tilt: 0° to 90°
Movement Speed Pan: 0.1° to 60°/s, Tilt: 0.1°to 50°/s
Preset No. 300
Patrol 8 patrols, up to 32 presets per patrol
Park Action Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan
Scheduled Task Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama
scan/dome reboot/dome adjust/aux output
Proportional Zoom Support
Power-off Memory Support
Position Display On/ Off
IR
IR Distance Up to 30m
Smart IR Support
System Integration
Alarm I/O 1 alarm input, 1 alarm output
Alarm Linkage
Alarm actions, such as Send Email, Notify Surveillance Center, Upload to FTP/Memory
Car/NAS, Trigger Recording etc.
Audio I/O 1 audio input, 1 audio output
Ethernet 1 RJ45 10M/100M Ethernet interface
Memory Card Built-in memory card slot, supporting SD/SDHC/SDXC, up to 128GB
Client iVMS-4200
Web Browser IE7+, Chrome18+, Firefox5.0+, Safari5.02+
General
Power DC 12V, and PoE (802.3af, class3)
Max.: 9W
Working Temperature -10°C to 50°C (-14°F to 122°F)
Working Humidity ≤ 90%
Protection Level TVS 4,000V lightning protection, and surge protection
Dimensions(mm) Φ125mm × 137.2mm (Φ4.9″×5.4″)
Weight Approx. 0.65kg (1.4lb)
