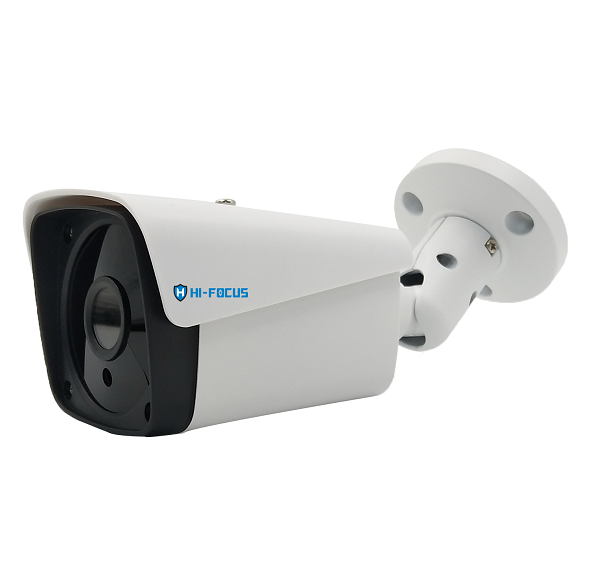

HC-T2240N3-S

HC-T2240N3-S

1/2.7″ 2.4Megapixel CMOS
25/30fps@1080P, 25/30/50/60fps@720P
High speed, long distance real-time transmission
HD and SD switchable
OSD Menu, control over coaxial cable
DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
3.6mm fixed lens (6mm optional)
Max. IR LEDs length 30m, Smart IR
IP67, DC12V

Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

Image Sensor

Effective Pixels

Electronic Shutter Speed

Minimum Illumination

Synchronization

Video Output



Max. IR LEDs Length

Backlight Compensation

Day/Night

Noise Reduction

OSD Menu

Focal Length

Angle of View

Mount Type

Power Supply

Power Consumption

Working Environment

Transmission Distance

Ingress Protection

Material

Dimensions

Weight

1/2.7” 2.4 Megapixel CMOS

1944(H) x 1080(V)

1/25~1/100000s

0.02Lux/F2.0, 0Lux IR on

Internal

1-channel BNC high definition video output/ CVBS

Standard definition video output (Can switch)

30m, Smart IR

DWDR

Auto(ICR) / Color / B/W

2D

Support

3.6mm (6mm optional)

H: 89.9º(59.4º)

M12

DC12V±25%

Max 4W

-40°C~+60°C / Less than 95%RH (no condensation)

Over 500m via 75-3 coaxial cable

IP67

Metal (body) + Plastic (sunshield)

70mm×165mm

0.35Kg
