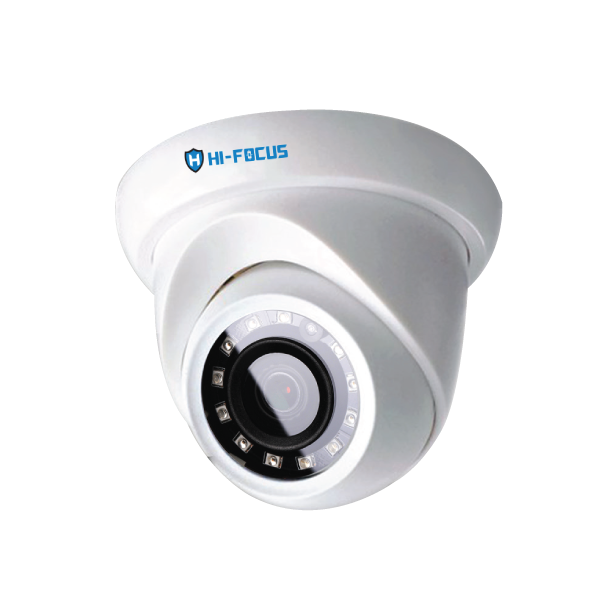

HC-D2240N2-S

HC-D2240N2-S

Max 30fps@1080P
HD and SD output switchable
Support BLC / HLC / DWDR/ AGC
3.6mm fixed lens
Max. IR length 20m, Smart IR
DC12V

Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

Image Sensor

Effective Pixels

Scanning System

Electronic Shutter

Minimum Illumination

S/N Ratio

IR Distance

White balance

Focal Length

Max Aperture

Angle of view

Mount Type

Resolution

Pan/Tilt/Rotation

Frame Rate

Power Supply

Power Consumption

Operating Conditions

Dimensions

Casing

Net Weight

1/2.9″ 2.4MP CMOS

1944(H)×1080(V), 2.4MP

Progressive

PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s

0.02Lux/F2.0, 0Lux IR on

More than 65dB

Up to 20m (66feet) with Smart IR

Auto/Manual

3.6mm(2.8mm, 6mm optional)

F2.0t

H: 82.8° (106°/51.2°)t

Board-in Type

1080P(1920×1080)

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

25/30fps@1080P, 25/30/50/60fps@720P

12V DC ±25%

Max 2.8W (12V DC, IR on)

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

85.4mm×69.1mm (_3.36″×2.72″)

Plastic

0.11kg (0.24lb)
