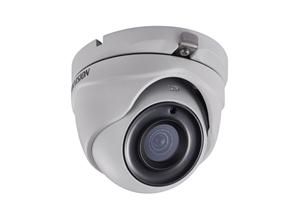

Hikvision DS-2CD1510F IMP IP Mini Dome CCTV Camera

Image Sensor 1/4″ Progressive Scan CMOS
©2006 – 2014 by HIKVISION. All rights reserved.
2
Min. Illumination
Color : 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON)
B/W : 0.001Lux @(F1.2,AGC ON), 0.0028Lux @(F2.0,AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Lens 4mm@F2.0 (2.8mm, 6mm optional)
Angle of view: 55°(4mm)
Lens Mount M12
Day &Night Electronic
Digital Noise
Reduction
3D DNR
Angle Adjustment Pan: ± 15°, Tilt: 0 – 90°, Rotation: ± 15° WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 encoding level BaseLine Profile/Main Profile
Video Bit Rate 32Kbps~8Mbps
Max. Resolution 1280 × 720
Frame Rate
50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web
browser
Backlight
compensation Yes, zone optional
ROI Support
Network
Network Storage
Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB.
NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis,
Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection,
privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication 1 RJ45 10M/100M Ethernet interface
General
Operating Conditions
-10 °C – 40 °C
Humidity 95% or less (non-condensing)
Power Supply 12 VDC±10% / PoE
Power Consumption Max. 4W
Dimensions (mm) 99.9 × 97.5 × 46.5 mm (3.93” × 3.84” × 1.83”)
