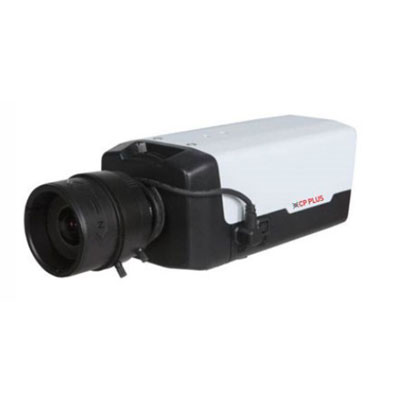

CP-VNC-B4K-VM 4K Ultra HD Network Box camera

CP Plus

  • 1/1.7″ 12 MP PS CMOS Image Sensor
  • Max.20 fps@12 MP (4000×3000) , Max.30 fps@4K (3840×2160)
  • H.265, H.264, MJPEG Triple-stream Encoding
  • DWDR, Day/Night(ICR), Corridor mode, 3DNR, ROI, Defog, AWB, AGC, BLC, HLC
  • CS Mount lens, Micro SD Card, Supports PoE
  • 6 KV surge protection designed for network interface
  • Supports Instastream technology, save diskspace and bandwidth upto 70%
  • Mobile Software: Android, iOS
  • CMS Software: IVMS

  • Image Sensor1/1.7″12 Megapixel CMOS
  • Minimum IlluminationColour: 0.06 Lux (F1.2, AGC ON) B/W:0.03 Lux(F1.2, AGC ON)
  • Shutter SpeedAuto/Manual, 1/6~1/100000 s
  • White BalanceAuto/Manual
  • LensCS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.265, H.264, MJPEG
  • S/N Ratio>55dB
  • Back Light Comp.BLC / HLC / DWDR
  • Video StreamingTriple Stream
  • Resolution12M(4000× 3000)/8M(2880× 2880)/6M(2880× 2160)/3M(2048× 153)
  • Video Output1 BNC, impedance 75 O; amplitude 1 V [p-p]
  • Frame Rate12 MP (4000×3000):Max.20 fps; 4K (3840×2160):Max.30 fps
  • ICRAutomatically removable IR-cut filter(ICR)
  • ROIsupports
  • Audio Inputimpedance 35 kO; amplitude 2 V [p-p]
  • Audio Outputimpedance 600 O; amplitude 2 V [p-p]
  • Audio ComprerssionG.711
  • Alarm IN2 Ch.
  • Alarm Out1 Ch.
  • Interface1 RS485 (support Pelco-D/P)
  • ProtocolL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, ONVIF, API
  • Smart DetectionIntrusion, crossing line, Motion detection, Audio detection, Face detection, Defocus, Scene Change, People counting
  • Smart PhoneiPhone, iPad, Android Phone
  • Micro SDMicro SD, upto 128GB
  • Operating Temperature-20°C~+60°C(-4°F ~ 140°F)
  • Humidity<95% RH(non-condensing)
  • Power Source24 V AC, 12 V DC, or PoE (IEEE802.3 af)
  • Power Consumption6.5W (9.5W with ICR on)
  • Dimension151.5mm x 71mm x 65 mm (6.0“ x 2.8“ x 2.6”)
  • Weight0.48 kg
