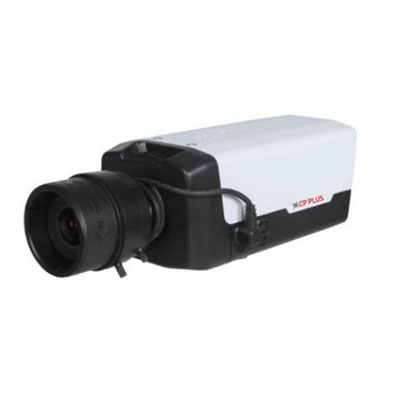

CP-VNC-B21-VMD 2 MP Full HD WDR Box Camera

CP Plus
Add to wishlist
Compare
  • 1/2.8″ 2MP PS CMOS Image Sensor
  • Max 25/30fps@1080P
  • H.265 and MJPEG Triple-stream Encoding
  • WDR, Day/Night(ICR), Corridor mode, 3D-DNR, AWB, AGC, ROI, BLC, HLC
  • C/CS Mount lens, Micro SD, PoE
  • 6 KV surge protection designed for network interface
  • Supports Instastream technology, save diskspace and bandwidth upto 70%
  • Mobile Software: Android, iOS
  • CMS Software: IVMS

Compare
  • Image Sensor1/2.8″ 2MP Progressive scan CMOS
  • Minimum IlluminationColour: 0.02 Lux (F1.2, AGC ON) 0 Lux with IR
  • Shutter SpeedAuto/Manual, 1/6~1/8000 s
  • White BalanceAuto/Manual
  • LensC/CS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.265/MJPEG
  • S/N Ratio>52dB
  • Back Light Comp.Auto / WDR (120dB)
  • Video StreamingTriple
  • Resolution1920 × 1080
  • Video Output1 BNC, impedance 75 O; amplitude 1 V [p-p]
  • Frame Rate1080P (1920 x 1080) 30 fps; 720P (1280 x 720) 30 fps; D1 (720 x 576) 25 fps
  • ICRIR-cut filter with auto switch (ICR)
  • ROIsupports
  • Audio Inputimpedance 35 kO; amplitude 2 V [p-p]
  • Audio Outputimpedance 600 O; amplitude 2 V [p-p]
  • Audio ComprerssionG.711
  • Alarm IN2 Ch. IN
  • Alarm Out1 Ch. Out
  • Interface1 RS485 (support Pelco-D/P)
  • ProtocolL2TP, IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, ONVIF, API
  • Micro SDMicro SD, up to 128 GB
  • Operating Temperature-20°C ~ +60°C (-4°F ~ 140°F)
  • Humidity<95% RH(non-condensing)
  • Power Source24 V AC, 12 V DC, or PoE (IEEE802.3 af)
  • Power Consumption4.8 W (6.8W with ICR on)
  • Dimension151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”)
  • Weight0.48 kg
