- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input16 Channel, each channel up to 5MP
- Two-way TalkReuse audio in/out, RCA
- User InterfaceGUI
- Video Input32 Channel
- Video Output1 HDMI, 1 VGA, 1 TV
- Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
- CompressionH.264
- Video Resolution1080N(960 x 1080), 720P, 960H, D1, HD1, BCIF, CIF, QCIF
- Audio Input1 channel, RCA
- Audio Output1 channel, RCA
- Motion DetectionMD Zones: 396 (22 × 18)
- Video Losssupports
- Camera Blanksupports
- Hard Disk2 SATA port, up to 16TB
- Smart PhoneiPhone, iPad, Android Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup ModeUSB Device/Network
- Interface Ports1 HDMI, 1 VGA, 1 TV, 2 USB (1 USB 2.0 , 1 USB 3.0), 1 RS485
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- EthernetRJ-45 port (1000M)
- ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.4.1, CGI Conformant
- Power SupplyDC12V/4A
- Power Consumption<20W(without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension375mm x 287mm x 53mm
- Weight2 KG(without HDD)
32 Ch., Digital Video Recorder (DVR)

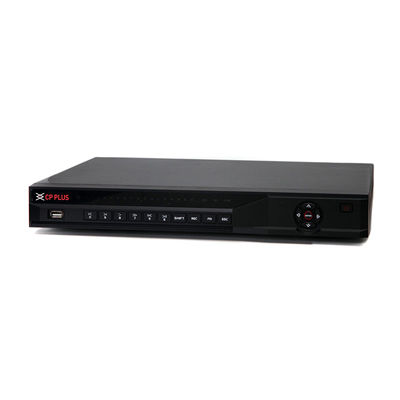

CP-UVR-3201E2-S 32 Ch. 1080P Lite Cosmic HD DVR
- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Support upto 5MP IP Camera
- All channel 1080P Lite Non-Realtime Recording
- H.264 dual-stream Video Compression
- Support 2 SATA Ports up to 16TB, 2 USB (1 USB 3.0,1 USB 2.0)
- HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software:KVMS, KVMS Pro
