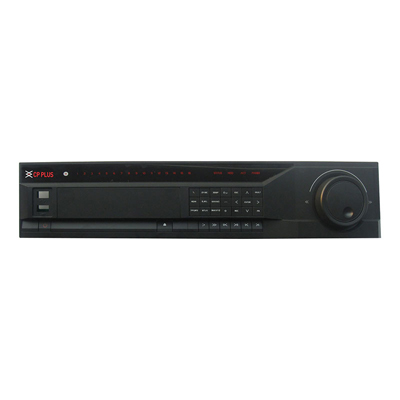

CP-UVR-1616K8D-S 16 Ch.1080P Cosmic HD DVR

CP Plus
Add to wishlist
Compare
  • Auto Adaptive HDCVI/AHD/TVI/CVBS signals
  • Support upto 5MP IP Camera
  • All channel 1080P Recording
  • H.264Plus/ H.264 dual-stream Video Compression
  • 2 HDMI / VGA Simultaneous Video Output
  • Support Multi-brand network cameras
  • Support 8 SATA HDD up to 8TB Capacity for each disk,1 eSATA, 4 USB(2USB2.0 , 2USB3.0)
  • Mobile Software: iCMOB, gCMOB
  • CMS Software:KVMS, KVMS Pro

Compare
  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input16+8 Channel, each channel up to 5MP
  • Two-way Talk1 channel Input, 1 channel Output, BNC
  • User InterfaceGUI
  • Video Input16 channel, BNC
  • Video Output2 HDMI, 1 VGA, 1 TV
  • Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • CompressionH.264+/H.264
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Audio Input16 channel, RCA
  • Audio Output1 channel, RCA
  • Motion Detectionsupports
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16 channel
  • Alarm Output6 channel
  • Hard Disk8 SATA ports up to 8TB capacity for each disk, 1 eSATA port
  • Smart PhoneiPhone, iPad, Android Phone
  • Trigger EventsRecording, PTZ, Tour, Alram Out, Video Push, Email, FTP, Spot, Buzzer & Screen tips
  • Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second), Smart search
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
  • Backup ModeUSB Device/Network
  • Interface Ports2 HDMI, 1 VGA, 1 TV, 4 USB(2 USB 2.0 , 2 USB 3.0), 1 RS485, 1RS232
  • Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet2 RJ-45 port (10/100M/1000M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 2.4.1, CGI Conformant
  • Power SupplyAC 100~240 V, 50/60 Hz
  • Power Consumption<35W(Without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension440mm×455mm×95mm
  • Weight6.5KG(without HDD)
