- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- Two-way Talk1 channel Input,1 channel Output, BNC
- User InterfaceGUI
- Video Input16 channel, BNC
- Video Output1 HDMI, 1 VGA ,1 TV
- Video StandardAnalog: NTSC/PAL, HDCVI: 720P HDCVI Camera, IP: 2ch: 1080P/720P IP Camera
- CompressionH.264 / G.711
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
- Audio Input16 channel, RCA
- Audio Output1 channel, RCA
- Motion Detectionsupports
- Video Losssupports
- Camera Blanksupports
- Alarm Input16 Channel
- Alarm Output6 Channel
- Hard Disk8 SATA ports(8 HDDs or 6HDDs+1 CD/DVD-RW), up to 32TB, 1 eSATA port
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
- Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
- Search ModeTime/Date, MD & Exact search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup ModeUSB Device/eSATA Device/Internal SATA burner/Network
- Interface Ports1 RS485, 1 RS 422, 1 RS232, 4 USB2.0
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- Ethernet2 RJ-45 port (10/100M/1000M)
- ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
- Power SupplyAC 100~240 V, 50/60 Hz
- Power Consumption40W(Without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension440mm× 460mm× 89mm
16 Ch., Digital Video Recorder (DVR)

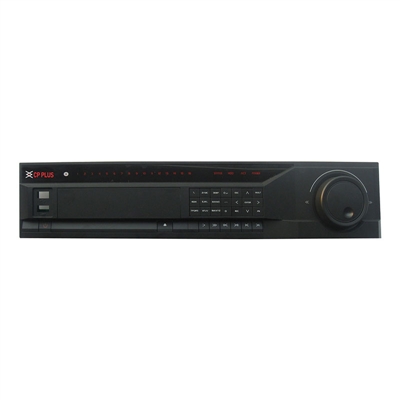

CP-UVR-1616E8D 16 Ch. 720P Tribrid HDCVI DVR
- Tribrid: Each channel supports Analog/HDCVI/IP Video input
- All channel 720P non Realtime Recording
- H.264 dual-stream Video Compression
- HDMI / VGA / TV Simultaneous Video Output
- Support Multi-brand network cameras:
- Support 8 SATA HDDs up to 32TB, 1 eSATA, 4 USB2.0
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software:KVMS, KVMS Pro
Compare
Based on 0 reviews
Be the first to review “CP-UVR-1616E8D 16 Ch. 720P Tribrid HDCVI DVR”
