- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- Two-way TalkReuse audio input/output channel 1
- User InterfaceGUI
- Video Input16 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: NTSC/PAL, HDCVI: 720P HDCVI Camera
- CompressionH.264 / G.711
- Video Resolution1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768, 800 × 600
- Audio Input1 channel, RCA
- Audio Output1 channel, RCA
- Motion Detectionsupports
- Video Losssupports
- Camera Blanksupports
- Hard Disk1 SATA port, up to 4TB
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
- Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
- Search ModeTime/Date, MD & Exact search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup ModeUSB Device/Internal SATA burner/Network
- Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB2.0
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- EthernetRJ-45 port (10/100M)
- ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
- Power SupplyDC12V/2A
- Power Consumption10W(without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension260mm × 220mm × 40mm
- Weight0.75Kg(without HDD)
16 Ch., Digital Video Recorder (DVR)

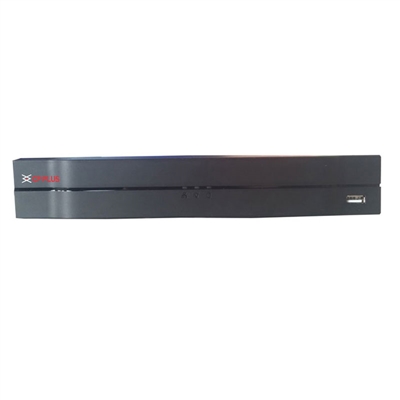

CP-UVR-1601C1 16 Ch. 720P HDCVI DVR
- All channel 720P Recording
- Support HDCVI/Analog Video input
- H.264 dual-stream Video Compression
- HDMI / VGA Simultaneous Video Output
- Support 1 SATA HDD up to 4TB, 2 USB2.0
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software:KVMS, KVMS Pro
