- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- Two-way TalkReuse audio input/output channel 1
- User InterfaceGUI
- Video Input4 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: NTSC/ PAL, HDCVI: 1080P/720P HDCVI Camera, IP: 1080P/720P/D1/CIF IP Camera: 4+2 up to 5Mp
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
- Audio Input4 channel, RCA
- Audio Output1 channel, RCA
- Motion Detectionsupports
- Video Losssupports
- Camera Blanksupports
- Alarm Input8 channel
- Alarm Output3 channel
- Hard Disk2 SATA port, up to 12TB
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
- Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
- Search ModeTime/Date, MD & Exact search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup ModeUSB Device/Internal SATA burner/Network
- Interface Ports1 HDMI, 1 VGA, 2 USB2.0
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- EthernetRJ-45 port (10/100M)
- ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
- Power SupplyDC12V/4A
- Power Consumption15W(without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension325mm × 255mm × 55mm
- Weight2.35KG(without HDD)
4 Ch., Digital Video Recorder (DVR)

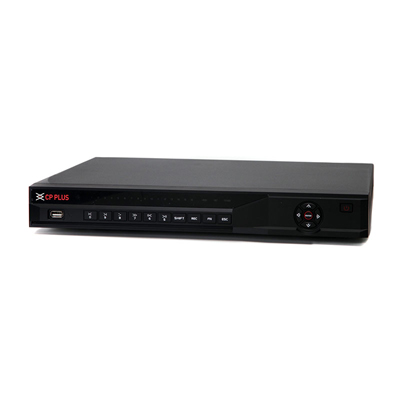

CP-UVR-0404K2-V3 4 Ch. 720P HDCVI DVR
- Support HDCVI/Analog/IP Video input
- All channel 1080N/720P realtime or 1080P non-realtime recording
- H.264 dual-stream Video Compression
- HDMI / VGA Simultaneous Video Output
- Support 2 SATA HDD up to 8TB, 2 USB2.0
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software:KVMS, KVMS Pro
Compare
Based on 0 reviews
Be the first to review “CP-UVR-0404K2-V3 4 Ch. 720P HDCVI DVR”
