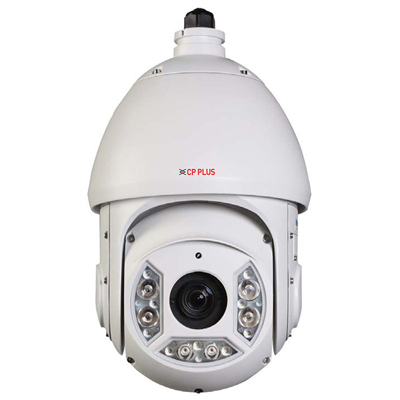

CP-UVP-F2520L15-D 2 MP 1080P HDCVI IR PTZ Camera

CP-UVP-F2520L15-D 2 MP 1080P HDCVI IR PTZ Camera

  • 1/2.8″ 2Megapixel CMOS Image sensor
  • Max. 25/30fps@1080P, 25/30/50/60fps@720P
  • Powerful 25x Optical and 16x Digital zoom
  • WDR(120dB), 3D DNR
  • Up to 300 presets, 8 auto scan, 8 tour, 8 auto pan, 5 pattern
  • IR Range of 150 Mtr.
  • Max 240°/s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

  • Image Sensor1/2.8″ PS CMOS Image Sensor
  • Effective Pixels1920(H) x 1080(V), 2 Megapixels
  • Video Output1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable)
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.005Lux@F1.6 ; 0Lux@F1.6 (IR on)
  • Focal Length4.8mm~120mm
  • White BalanceAuto,ATW,Indoor,Outdoor,Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 59.2° ~ 2.4°
  • Electronic Shutter1/3s~1/300,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR(120dB)
  • Optical Zoom25x
  • Digital Zoom16x
  • Pan Travel0°~360° endless, Pan Speed: 0.1° ~160° /s
  • Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~120° /s
  • Manual SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
  • Presets300
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video Compression1080P(1920×1080) / 720P(1280×720)
  • Video Streaming25/30fps@1080P, 25/30/50/60fps@720P
  • Audio Streaming1 channel In
  • Networking1 RS485
  • ProtocolsPelco-P/D (Auto recognition)
  • Alarm2/1 channel In/Out
  • Operating Temperature-40ºC ~ 60ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ204.7(mm) x 359.9(mm)
  • Weight7.8kg
  • Power SourceAC24V/3A(±10%)
  • Power Consumption13W,23W (IR on)
  • Optical Zoom25x
