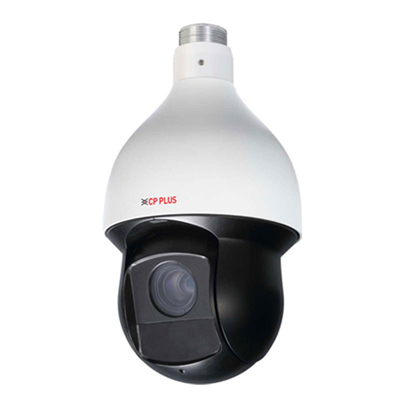

CP-UVP-20205L10 2 MP 1080P HDCVI IR PTZ Dome Camera

CP-UVP-20205L10 2 MP 1080P HDCVI IR PTZ Dome Camera

  • 1/2.8″ Exmor HQIS Pro Image sensor
  • Powerful 20x Optical and 16x Digital zoom
  • BLC / HLC / DWDR
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • IR Range of 100 Mtr.
  • Max 400°/s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

  • Image Sensor1/2.8″ Exmor HQIS Pro
  • Effective Pixels1920(H) x 1080(V)
  • Video Output1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
  • S/N RatioMore than 50dB
  • Minimum IlluminationColor: 0.05Lux@F1.4, B/W: 0.005Lux@F1.4, 0Lux (IR on)
  • Focal Length4.7mm~94mm (20x Optical zoom)
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 54.1° ~ 3.1°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom20x
  • Digital Zoom16x
  • Pan Travel0°~360° endless, Pan Speed: 0.1° ~ 300°/sec
  • Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~200°/sec
  • Presets300
  • Preset SpeedPan: 400° /s; Tilt: 300° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuo activation of Prese/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Audio Streaming1 channel In
  • ProtocolsPelco-P/D (Auto recognition)
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ186.0(mm) x 310(mm)
  • Weight3.5kg
  • Power SourceAC24V/3A (±10%)
  • Power Consumption12W, 25W (IR on)
  • Optical Zoom20x
