- Image Sensor1/3″ PS CMOS
- Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
- Effective Pixels2560×1440 , 4MP
- Shutter SpeedPAL: 1/25~1/100000s NTSC: 1/30~1/100000s
- White BalanceAuto / Manual
- Lens3.6mm (2.8mm, 6mm Optional)
- AGC ControlAuto / Manual
- S/N RatioMore than 65dB
- Back Light Comp.BLC / HLC / DWDR
- Video Streaming25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
- Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
- ICRAuto (ICR) / Manual
- IRIR Range of 20 Mtr.
- No. of IR LEDs12pcs
- Operating Temperature-40°C~+60°C / Less than 90%RH
- Power Source12V DC ±25%
- Power ConsumptionMax 3.2W (12V DC, IR on)
- Weatherproof StandardIP67
- Dimension176mm x 72.4mm x 72.5mm
4 MP, Analog HD Camera

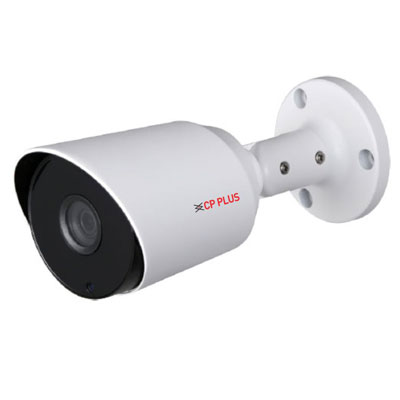

CP-UVC-TA40L2M 4 MP IR HDCVI Bullet Camera – 20 Mtr.
- 1/3″ 4MP PS CMOS Image Sensor
- Max 30fps@4MP
- DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm lens (2.8mm, 6mm optional)
- OSD Menu, control over coaxial cable, 2D-DNR
- IR Range of 20 Mtrs. , IP67
- HD and SD switchable
