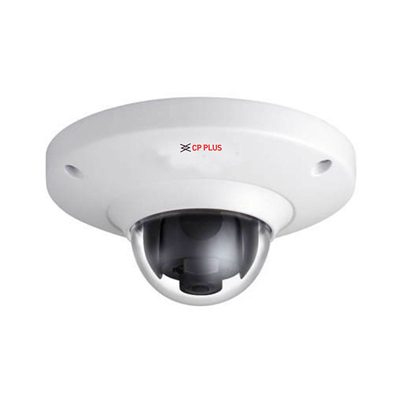

CP-UVC-EB40-D 4 MP WDR IR HDCVI FishEye Camera

CP Plus

  • 1/3″ 4MP PS CMOS Image Sensor
  • Max. 25fps@4MP
  • WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
  • 1.18mm Panoramic lens
  • OSD Menu, control over coaxial cable, 2D/3D-DNR
  • IK10
  • HD and SD dual-output

  • Image Sensor1/3″ PS CMOS
  • Minimum Illumination0.01Lux/F2.0 (Color), 0.001lux/F2.0(B/W)
  • Effective Pixels2560×1440 , 4MP
  • Shutter SpeedPAL: 1/4s~1/100,000s , NTSC: 1/3s~1/100,000s
  • White BalanceAuto / Manual
  • Lens1.18mm panoramic lens
  • AGC ControlAuto / Manual
  • S/N RatioMore than 65dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video Streaming25fps@4MP
  • Video Output1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
  • ICRAuto (Electronic) / Manual
  • Operating Temperature-30°C~+60°C / Less than 90%RH
  • Power Source12V DC ±25%
  • Power ConsumptionMax 2.2W (12V DC)
  • Weatherproof StandardIK10
  • Dimensionφ110mm x 56mm (φ4.3″×2.2″)
  • Weight0.41 kg
