- Image Sensor1/2.8″ 2.4MP PS CMOS
- Minimum Illumination0.005Lux/F1.3, 30IRE, 0Lux IR on
- Shutter SpeedPAL: 1/4s~1/100000s , NTSC: 1/3s~1/100000s
- White BalanceAuto / Manual
- Lens7mm-22mm Motorized Lens
- AGC ControlAuto / Manual
- S/N RatioMore than 65dB
- Back Light Comp.BLC / HLC / WDR(120dB)
- Video Streaming25/30fps@2.4MP, 25/30fps@720P
- Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
- ICRAuto (ICR) / Manual
- IRArray Range of 60 Mtr.
- No. of IR LEDs4pcs
- Operating Temperature-40°C~+60°C / Less than 90%RH
- Power Source12V DC ±25%
- Power ConsumptionMax 10.1W (12V DC, IR on)
- Weatherproof StandardIP67
- Dimension213.0mm x 90.4mm x 90.4mm
- Weight0.61kg
2.4 MP, Analog HD Camera

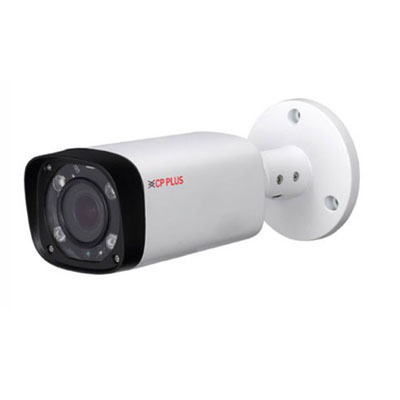

CP-USC-TB24ZR6-DS-0722 2.4 MP WDR Array Cosmic Bullet Camera – 60Mtr.
- 1/2.8″ 2.4 MP PS CMOS Image Sensor
- Max 30fps@2.4MP
- WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
- 7mm-22mm Motorized lens
- OSD Menu, control over coaxial cable, 2D-DNR
- Array Range of 60 Mtrs. , IP67
- HD and SD switchable
