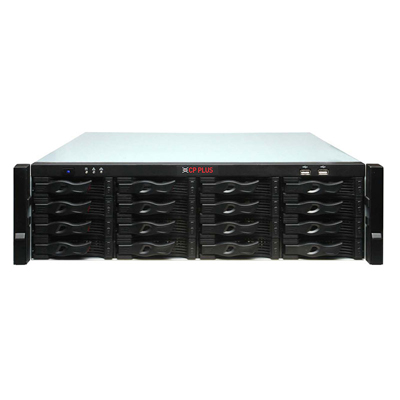

CP-UNR-4K664R16-EV2 64 Ch. H.265 4K Network Video Recorder

CP Plus
Add to wishlist
Compare
  • Up to 64 channel IP camera input
  • Up to 12MP resolution preview and playback
  • Max 384 Mbps incoming bandwidth
  • Support 16 SATA Ports, up to 128TB, 4 USB Ports (2 USB3.0), 1 eSATA Port
  • Support iSCSI and Mini SAS for Expanded Storage Space
  • 2 HDMI / 1 VGA simultaneous video output
  • Support Multi-brand network cameras
  • Support RAID 0/1/5/6/10/50/60
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro

Compare
  • ProcessorIntel Quad-core Processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input64 Channel
  • Two-way Talk1 Channel Input, 1 Channel Output, RCA
  • User InterfaceGUI
  • Video Output2 HDMI (up to 3840 x 2160), 1 VGA, 4 HDMI (Optional)
  • CompressionH.265/H.264/MJPEG
  • Video Resolution3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
  • Video Recording384Mbps
  • Video Display Split1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
  • Motion DetectionMD Zones: 396 (22 × 18)
  • Video LossSupports
  • Camera BlankSupports
  • Alarm Input16 Channel, Low Level Effective, Green Terminal Interface
  • Alarm Output8 Channel, NO/NC Programmable, Green Terminal Interface
  • Hard Disk16 SATA III Ports, Up to 128 TB, Supports hot swap
  • Smart PhoneiPhone, iPad, Android
  • Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • HDD ManagementSingle, Raid 0/1/5/6/10, (Support Global HDD Hot-spare)
  • Recording ModeManual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • Playback128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
  • Backup ModeUSB Device/Network/eSATA Device
  • Interface Ports2 HDMI, 1 VGA, 4 USB Ports (2 USB 2.0 , 2 USB 3.0), 1 Mini SAS Port, for Storage Expansion, 1 RS485, 1 RS232, 1 eSATA
  • Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
  • Max User Account128 users
  • Ethernet4 RJ-45 Ports (10/100/1000Mbps), 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
  • ProtocolsHTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search , ONVIF 2.4, CGI Conformant
  • Power SupplyAC100V ~ 240V, 50 ~ 60 Hz, Redundant
  • Power Consumption<51W (Without HDD)
  • Working Temp-10°C ~ +55°C, 0 ~ 90% RH
  • Dimension485mm x 512.9mm x 133.2mm
  • Weight17.6kg (without HDD)
