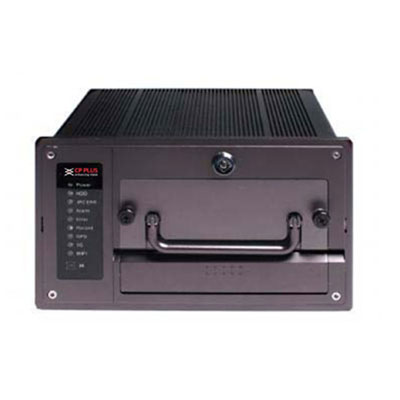

CP-UNR-408T2-MF 8 Channel PoE Mobile Standalone DVR

CP-UNR-408T2-MF 8 Channel PoE Mobile Standalone DVR

  • Up to 8 channel 1080P cameras realtime live view
  • H.264 / MJPEG dual codec decoding
  • Max 200 Mbps recording rate
  • Built-in 3G/4G/Wi-Fi module(optional)
  • 8 PoE Ports, Support 2 SATA HDDs, 2 USB2.0
  • Support 2 SATA HDDs, 2 USB2.0
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software:KVMS, KVMS Pro
  • Description
  • Additional information
  • Reviews (0)

Description

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded Linux
  • Two-way Talk1ch Mic in, 1ch Mic out (aviation connector)
  • Video Input8 channel
  • Video Output1 HDMI, 1VGA, 2TV
  • Video StandardPAL: 625 Lines, 50f/s; NTSC: 525 Lines, 60f/s
  • CompressionH.264 / G711A
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Audio Input8 Ch.
  • Audio Output1 Ch.
  • Motion DetectionZones: 396(22×18)
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input8 channel
  • Alarm Output2 channel
  • Hard Disk2 SATA ports up to 4TB, 1 eSATA port
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • SD Card1 SD card
  • Trigger EventsRecording, PTZ, Tour, Alarm out, Email, FTP, Snapshot, Buzzer & Screen tips
  • Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Search ModeTime/Date, Alarm, Motion Detection & Exact search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup ModeUSB Device / eSATA Device / Network / Internal HDD
  • Interface Ports3 USB 2.0, 1 RS232, 1 RJ45, 1 RS485, 1 eSATA, Supports G-Sensor, UPS, CAN Port
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • GPSGPS / BDS(optional)
  • EthernetRJ-45 port (10/100M)
  • ProtocolsHTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter
  • Power Supply6V~36V
  • Power Consumption=15W
  • Working Temp-10°C ~+60°C / 10%~95%RH / 86~106kpa
  • Dimension180mm × 208mm × 100mm
  • Weight3 KG(Without HDD)
