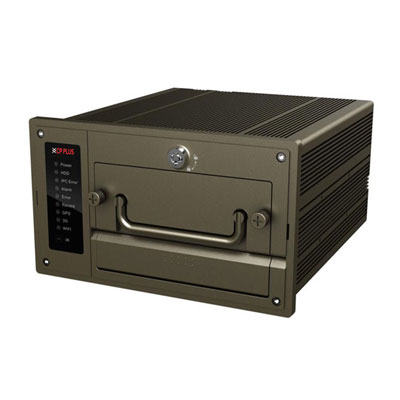

CP-UNR-404T2-M11 4 Channel PoE Mobile Standalone DVR description

CP-UNR-404T2-M11 4 Channel PoE Mobile Standalone DVR description

  • Up to 4 channel 1080P cameras realtime live view
  • Max 200Mbps Recording rate
  • Multi-information display and recording: Car Number, Time, Channel, GPS Speed, support freely setting of overlay and recording
  • Built-in module GPS, 3G, Wi-Fi
  • 4 PoE Ports, Onvif Version 2.3 conformance
  • Aviation connectors adopted ensuring signal stability
  • Support 2 SATA HDDs upto 4TB, 1 eSATA, 3 USB2.0
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS, KVMS Pro
  • Description
  • Additional information
  • Reviews (0)

Description

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded Linux
  • Two-way Talk1 channel Input, 1 channel Output
  • Video Input4Ch.
  • Video Output1 HDMI, 1 VGA, 2 TV
  • CompressionH.264 /H.265(optional)/ G711 / PCM
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Motion DetectionZones: 396(22×18), IVS (optional)
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input8 channel
  • Alarm Output3 channel
  • Hard Disk2 SATA ports upto 4 TB, 1 eSATA
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • SD CardsD card supports
  • Trigger EventsRecording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
  • Recording ModeManual, Schedule (Regular (Continuous), MD, Alarm), Stop
  • Search ModeTime/Date, Alarm, Motion Detection & Exact search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup ModeUSB Device/eSATA Device/Network/Internal HDD
  • Interface Ports3 USB 2.0, 1 RS232, 1 RJ45, 1 RS485, 1 eSATA, 2 Sim slots (optional)
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • GPSBuilt-in high accurate GPS module
  • EthernetRJ-45 port (10/1000M)
  • ProtocolsTCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
  • Power Supply6V~36V
  • Power Consumption=10W
  • Working Temp-30°C ~+60°C / 10%~95%RH
  • Dimension180mm × 208mm × 100mm
  • Weight3 KG(Without HDD)
