- Image Sensor1/3″ CMOS
- Effective Pixels1944(H) x 1092(V), 2 Megapixels
- Horizontal Resolution>1000TVL
- Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
- S/N RatioMore than 55dB
- Minimum IlluminationColor: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
- Focal Length5.1mm ~ 61.2mm
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 51.3° ~ 4.64°
- Electronic Shutter1/3 ~ 1/30,000s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / DWDR
- Optical Zoom12x
- Digital Zoom16x
- Pan Travel360° endless, Pan Speed: 0.1° ~ 300°/sec
- Tilt Travel-2° ~ 90°, Tilt Speed: 0.1° ~120°/sec, auto flip 180°
- Presets255
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
- Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Video CompressionH.264 / MJPEG
- Video StreamingMain Stream: 25/30fps@1080P/720P, Sub Stream: 25/30fps@D1/CIF
- Audio ComprerssionG.711a / G.711u (32kbps) / PCM (128kbps)
- Audio Streaming1/1 channel In/Out
- ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
- Alarm2/1 channel In/Out
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Operating Temperature-10ºC ~ 60ºC / Less than 90% RH
- Weatherproof StandardIP66 & IK10 (optional)
- DimensionΦ170mm×155mm
- Weight1.8Kg
- Power SourceAC24V/1.5A (±10%), POE+(802.3at)
- Power Consumption12W
- MemoryMicro SD, Max 64GB
- Optical Zoom12x
Network, Speed Dome(PTZ)

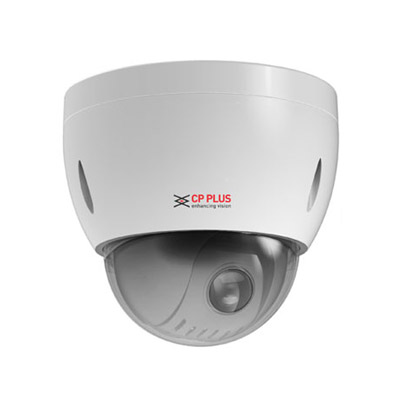

CP-UNP-4212T 2 MP Full HD IP PTZ Camera
- 1/3″ CMOS Image Sensor
- Powerful 12x Optical & 16x Digital zoom
- Max 25/30fps@1080P Resolution
- DWDR, Day/Night(ICR), DNR (2D, 3D)
- Up to 255 Presets, 8 Tour, 5 Pattern, 5 Auto scan
- Pan range: 360° endless, speed up to 300°/s
- Supports PoE, IP66
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
