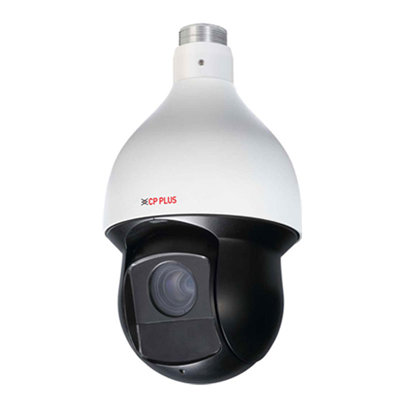

CP-UNP-3040L10 4MP 30x WDR IP IR PTZ Dome Camera – 100 Mtr.

CP Plus
Add to wishlist
Compare
  • 1/3″ CMOS Image sensor
  • Max. 25/30fps@4M, 50/60fps@1080P resolution
  • Powerful 30x Optical and 16x Digital zoom
  • H.265 and H.264 Encoding, triple Stream
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 400°/s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66, PoE+ , Micro SD, 100 Mtr. IR
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

Compare
  • Image Sensor1/3″ CMOS
  • Effective Pixels2688(H) x 1520(V) 4Mp
  • Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
  • Focal Length4.5mm ~ 135.0mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 60° ~ 2.2°
  • Electronic Shutter1/3 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR
  • Optical Zoom30x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 300°/sec
  • Tilt Travel-15° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~200°/sec
  • Presets300
  • Preset SpeedPan: 400° /s; Tilt: 300° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.265 /H.264 / MJPEG
  • Video StreamingMain Stream: 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 1080P /960P/720P(1 ~ 25/30fps)
  • Audio ComprerssionG.711a / G.711Mu(32kbps)/ PCM(128kbps)
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection
  • NetworkingRJ-45 (10/100Base-T), 1RS485
  • ProtocolsIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF PSIA CGI
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating TemperaturePoE: -30ºC ~ 60ºC / Less than 90% RH, AC24V: -40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ186mm × 309mm
  • Weight3.5 kg
  • Power SourceAC24V, POE plus(802.3at)
  • Power ConsumptionPoE: 13W, 20W (IR on), AC24V: 13W, 23W (IR on
  • RegulatoryCE, FCC, RoHS & UL
  • MemoryMicro SD, Max 128GB
  • Optical Zoom30x
