- Image Sensor1/1.9″ CMOS
- Effective Pixels1920(H) x 1080(V), 2 Megapixels
- Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
- S/N RatioMore than 56dB
- Minimum IlluminationColor: 0.002Lux@F1.5; 0Lux@F1.5 (IR on)
- Focal Length6mm~180mm
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 61.2° ~ 2.1°
- Electronic Shutter1/1 ~ 1/30,000s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / WDR(120dB)
- Optical Zoom30x
- Digital Zoom16x
- Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 200°/sec
- Tilt Travel-20° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~120°/sec
- Presets300
- Preset SpeedPan: 240° /s; Tilt: 200° /s
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
- Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Video CompressionH.264 / MJPEG
- Video StreamingMain Stream: 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 720P/D1/ CIF (1 ~ 25/30fps)
- Audio ComprerssionG.711a/G.711mu/G.726/AAC
- Auto Trackingsupport
- Audio Streaming1/1 channel In/Out
- IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
- NetworkingRJ-45 (10/100Base-T), 1RS485
- ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF, PSIA, CGI
- Alarm7/2 channel In/Out
- Smart PhoneiPhone, iPad, Android Phone
- Operating Temperature-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
- Weatherproof StandardIP67, IK10
- DimensionΦ240(mm) x 382 (mm)
- Weight6.75 kg
- Power SourceAC24V/3A(±25%), Hi-POE
- Power Consumption24W, 38W (IR on)
- MemoryMicro SD, Max 128GB
- Optical Zoom30x
Network, Speed Dome(PTZ)

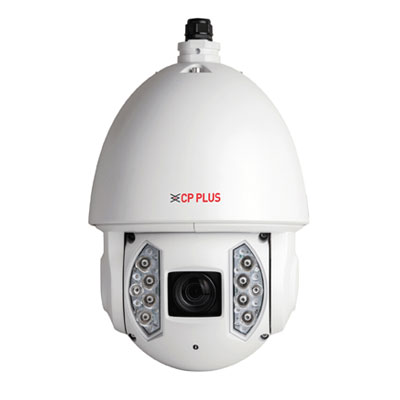

CP-UNP-3020L20DA-P 2MP 30x WDR IP IR PTZ Dome Camera
- 1/1.9″ 2MP CMOS Image sensor
- Max 60fps@720P and 30fps@1080P resolution
- Powerful 30x Optical and 16x Digital zoom
- WDR(120dB), Day/Night(ICR), 3D DNR, BLC, HLC, AWB
- Up to 300 Presets, 8 Tour, 5 Pattern, 8 Auto scan, 8 Auto Pan
- Max 240°/s pan speed, 360° endless pan rotation
- Auto-tracking and IVS, IR Range of 200 Mtr.
- Built-in 7/2 alarm in/out, IP67, IK10, Hi-PoE, Micro SD
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
