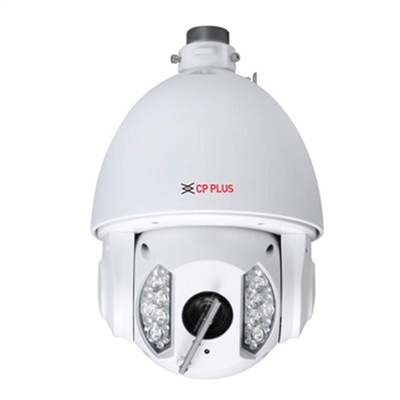

CP-UNP-2030WL15D 3MP IP IR PTZ Camera with WDR

CP-UNP-2030WL15D 3MP IP IR PTZ Camera with WDR

  • 1/3″ CMOS Image sensor
  • Max.15fps@3MP, 25fps@1080p resolution
  • Powerful 20x Optical and 16x Digital zoom
  • WDR, Day/Night(ICR), DNR (2D&3D)
  • Up to 255 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 240°/s pan speed, 360° endless pan rotation
  • IR Range of 150 Mtr.
  • Built-in 7/2 alarm in/out, IP66, Micro SD
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro



Categories: ,
  • Description
  • Additional information
  • Reviews (0)

Description

  • Image Sensor1/3″ CMOS
  • Effective Pixels2048(H) x 1536(V), 3 Megapixels
  • Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
  • S/N RatioMore than 50dB
  • Minimum IlluminationColor: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
  • Focal Length4.7mm~94.0mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 55.4° ~ 2.9°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR(120dB)
  • Optical Zoom20x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 200°/sec
  • Tilt Travel-10° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Presets255
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video StreamingMain Stream: 3M(1~15fps)/1080P/720P(1 ~ 25/30fps), Sub Stream: 25/30fps@D1/CIF
  • Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
  • Audio Streaming1/1 channel In/Out
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
  • Alarm7/2 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66, 4000V anti-lightning surge
  • DimensionΦ252(mm) x 384.3 (mm)
  • Weight6.75 kg
  • Power SourceAC 24V/3A(±16%)
  • Power Consumption20W, 43W (IR on, Heater on)
  • MemoryMicro SD, Max 64GB
  • Optical Zoom20x
