- Image Sensor1/1.9″ 2MP Progressive scan CMOS
- Minimum Illumination0. 002Lux/F1.65 (Color),0Lux/F1.65(IR on)
- Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
- White BalanceAuto/Manual
- Lens4-8 mm Motorized Lens
- AGC ControlAuto/Manual
- Video CompressionH.264/MJPEG
- S/N RatioMore than 50dB
- Back Light Comp.BLC/ HLC/ WDR(120dB)
- Video StreamingMain Stream:1080P/720P(1 ~ 50/60fps), Extra Stream: D1/CIF(1 ~ 50/60fps), Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
- Resolution1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576) /CIF(352× 288)
- Video Output1 Port
- ICRAuto(ICR)/Color/B/W
- Audio Input1 Channel
- Audio Output1 Channel
- Audio ComprerssionG.711a / G.711u
- Alarm IN1 Channel In
- Alarm Out1 Channel Out
- ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
- Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect
- User Account20 Users
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Micro SDMax 64GB
- Operating Temperature-30°C~+60°C, Less than 95% RH
- Power SourceDC12V(AC24V optional), PoE (802.3af)
- Power Consumption<12W (IR on: +2W)
- Weatherproof StandardIP66 & IK10
- DimensionΦ151mm×119mm
- Weight1.25 Kg.
2 MP, Network Camera

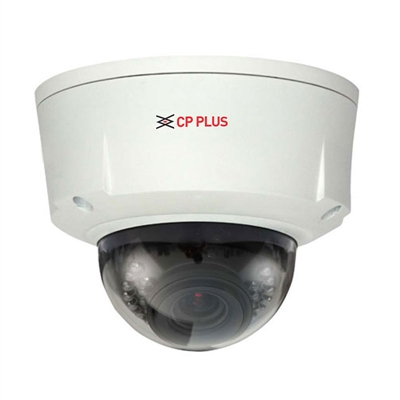

CP-UNC-VH20ZL3-MD 2 MP WDR IR Vandal Dome Camera – 30Mtr.
- 1/1.9″ 2MP PS CMOS Image Sensor
- Max 50/60fps@1080P
- Support H.264,MJPEG dual codec
- Ultra WDR(120dB), Ultra Defog, ROI, EIS, Smart detection, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
- 4 -8mm Motorized Lens
- IR Range of 30 Mtrs, IP66, IK10, PoE
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS Pro, vOptimus Pro
