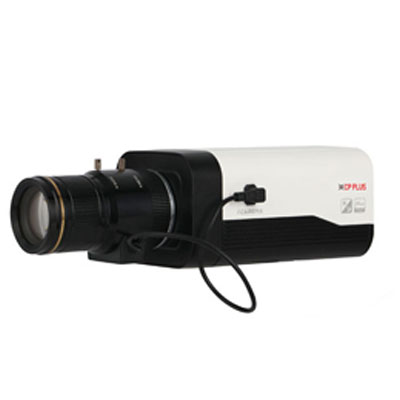

CP-UNC-BH21-VMD-V3 2 MP Network WDR Box Camera

CP Plus
Add to wishlist
Compare
  • 1/2.8″ 2MP PS CMOS Image Sensor
  • 50/60fps@1080P(1920×1080)
  • H.265 and H.264 triple-stream encoding
  • WDR(140dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • C/CS Mount Lens, PoE, SD Card
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

Compare
  • Image Sensor1/2.8″ 2MP progressive scan CMOS
  • Minimum Illumination0.003Lux/F1.2(Color,1/3s,30IRE) 0.03Lux/F1.2(Color,1/30s,30IRE) 0.001Lux/F1.2(B/W,1/3s,30IRE) 0.01Lux/F1.2(B/W,1/30s,30IRE)
  • Effective Pixels1920(H) x 1080(V)
  • Shutter SpeedAuto/Manual, 1/1~1/100000s
  • White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
  • LensC/CS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.265+/H.265/H.264+/H.264
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC / HLC / WDR(140dB)/ SSA
  • Video StreamingMain Stream: 1080P(1~50/60fps) , Sub Stream: D1 (1 ~ 50/60fps) , Third Stream: 1080P(1~50/60fps)
  • Resolution1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/342×240)
  • Video Output1 port
  • Motion DetectionOff / On (4 Zone, Rectangle)
  • ICRAuto(ICR)/Color/B/W
  • ROIOff / On (4 Zone)
  • Audio Input2 Channel , 1 Built-in Mic
  • Audio Output1 Channel
  • Audio ComprerssionG.711a/ G.711Mu/ AAC/ G.726
  • Alarm IN2 Channel In
  • Alarm Out2 Channel Out
  • Bit RateH.264: 24~ 10240Kbps , H.265: 14~ 6144Kbps
  • Interface1 RS485
  • ProtocolHTTP; HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; SSL, IGMP, DHCP; DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP, ONVIF ( Profile S ), PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Object Abandoned/Missing, Face Detection, People Counting, Heat Map
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android Phone
  • Micro SDMax 128GB
  • Operating Temperature-30°C~+60°C , Less than 95%RH
  • Power SourceDC12V, AC24V, PoE(802.3af)
  • Power Consumption<5.5W
  • Dimension161.6mm x 85.5mm x 74.0mm
  • Weight0.72Kg
