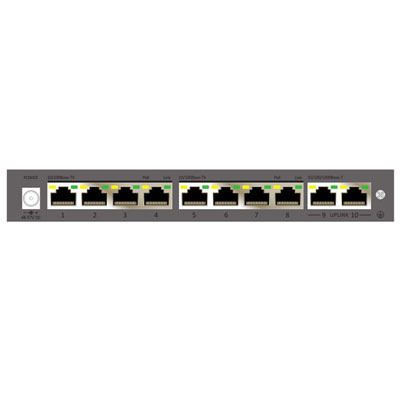

CP-TNW-HP8G2-12 8 Port Fast Ethernet POE switch with 2 GE Ports

CP Plus
Add to wishlist
Compare
  • Major ports 2 x Gigabit uplink Ethernet ports, which design is convenient to connect external network system, 8 x 10/100Mbps downlink PoE Ethernet ports, each of them supports MDI/MDIX
  • One Key CCTV Mode: Support VLAN and restrain network storm;1~8 downlink ports can only communicate with uplink ports
  • further transmission distance up to 250m in CCTV mode with the transmission speed rate 10Mbps
  • Transmission Distance: In Default mode, the distance of Ethernet port is 100m;In CCTV mode, the distance of downlink 1~8 ports up to 250m
  • Standard Accord with IEEE802.3 , IEEE802.3u , IEEE802.Saf , IEEE802.3at standard , PoE meets End-Span

Compare
  • PoE ModeRJ45 Ports with 30u Gold-plated Flattened Pin;Satisfy 802.3af/at Standard;Compatible with Mid-Span and End-Span
  • Relatively Operating Humidity0~95%
  • ColorBlack
  • Ethernet StandardIEEE 802.3/802.3u/IEEE802.3 af/at
  • Backplane Bandwidth5.6Gbps
  • Data Package Cache1.5Mb
  • ESDLevel 3 Per: IEC6 1 000-4-2
  • EFTLevel 2 Per: IEC6 1 000-4-4
  • Ethernet Port Light2pcs (Yellow& Green) on RJ45, Yellow Indicates PoE, Green Indicates Link/Act
  • Transmission DistanceDownlink Ethernet port:0~250m(CCTV), 0~100m (Default) , Uplink Ethernet port:0~100m
  • Lightning Protection6KV Per: IEC6 1 000-4-5
  • Power Light1pcs (Red)
  • Port Parameter Rate1~8 Downlink Ethernet port:10/100Mbps , 9~10uplink Ethernet port:10/100/1000Mbps
  • Surveillance Module Light1pcs(Green), Green Indicates CCTV
  • Power Consumption<5W
  • Power SourceDC48V~57V
  • Net Weight(g)500g
  • Dimension200mm x 101.8mm x 27mm
  • ESD ProtectionLevel 3 Per: IEC6 1 000-4-2
  • Packet Forwarding Rate4.16Mpps
  • Operating Temperature– 10°C~ 55°C
  • MAC Address List4K
