CP-TNW-HP4H1-6 5 Port Fast Ethernet Switch with 4 POE

CP Plus
Add to wishlist
Compare

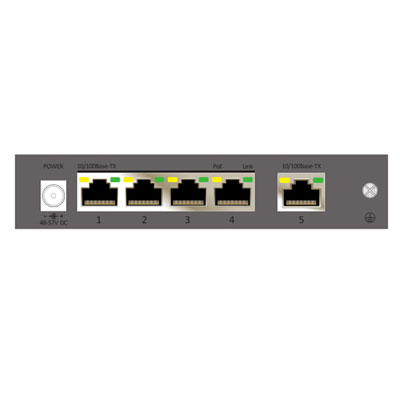

  • 4×10/100Base-TX Ethernet ports (PoE ports) and 1×10/100Base-TX up-link port
  • Support IEEE802.3af/at standards,Max. 30W output of single port
  • 1~4 downlink ports can only communicate with uplink ports,extend transmission distance up to 250m(10Mbps)
  • 6KV surge protection, 8KV ESD immunity and anti-interference
  • Easy and safe installation: wall-mounting, desktop,Kensington security slot , Plug-and-play.

Compare
  • Relatively Operating Humidity0~95%
  • ColorGray
  • Anti-thunder LevelCommon mode 6KV , Standard: IEC61000 4 5
  • Buffer768K
  • Ethernet Speed1-4 port Default:10 100Mbps, CCTV:10Mbps , Uplink port 100Mbps
  • ESDContact Discharge 6KV , Air Discharge Level 8KV , Standard: IEC61000-4-2
  • Ethernet Port Light2pcs(Yellow&Green) on RJ45 yellow indicates PoE, green indicates Link Act
  • Transmission Distance1-4 port: Default 0 100m , CCTV: 0~250m , UPLINK: 100m
  • Pluse GroupLevel 3 Standard: IEC61000 4 4
  • Power Light1pc(Red)
  • Surveillance Module Light1pc(Green), green indicates CCTV
  • Power Consumption<5W
  • Power SourceDC48V~54V
  • Net Weight(g)315g
  • Dimension135mm x 85.6mm x 27mm
  • Exchange Capacity1.0Gbps
  • Packet Forwarding Rate0.74Mpps
  • Operating Temperature– 10°C~ 45°C
  • MAC Address List2K
