- Operating SystemLinux 3.0.8
- Control ModeEasy Check, IR Remote Control, Network, Mouse
- Video SystemsElectrical level:1Vpp Impedance:75O NTSC/PAL Optional
- Total Resource(16 x 25)FPS WD1 @ PAL/(16 x 30)FPS WD1@NTSC +(8 x 30)FPS 720P
- ResolutionAnalog: PAL: WD1, WHD1, WCIF, D1, HD1, CIF, NTSC: WD1, WHD1, WCIF, D1, HD1, CIF; Digital: 720P
- Video Input16 channels WD1+8channels IPC(720P)
- Video Output3 channels
- Recording ModeBoots up/manual/schedule/Alarm event recording(sensor trigger, speed, external acceleration sensor, alarm button)
- Audio Input24 channels(8 channels IPC)
- Audio Output3 channels
- Pre-recording0~60 munites
- Post-recording0-30 minutes
- GPSLocation tracking, speed detection and time sync
- OSDLocating, alarm, vehicle number, speed and date/time
- Image Quality8 levels adjustable
- Mirror Recordingsupports
- Playback1/4 channels by local playback
- Sensors8 Inputs, 2 Outputs
- Search ModeDate/time, channel, event
- USBUSB 2.0 x 2 (1 at front panel, 1 at rear panel)
- EthernetRJ45(1000M) x 2
- Storagesupports 2.5″ SATA hard disk x 2, SD Card x 1
- Serial PortsRS232 × 2 / RS485 × 2
- Power InputDC8-36V
- Power Output12V@1A, 5V@1A
- Power ConsumptionImpulse current: input 13.5V@10A Working current: input 13.5V@5A input 27V@2.5A Standby current: 0A
- Dimension (WHD)324.6mm x 238mm x 116mm
- Weight4.2 Kg
- Operating Temperature-10°C ~ +70°C or -40°C ~ +70°C(heated)
- Relatively Operating Humidity8%~90%
- CertificationsCE, FCC
Mobile Digital Video, Mobile Surveillance

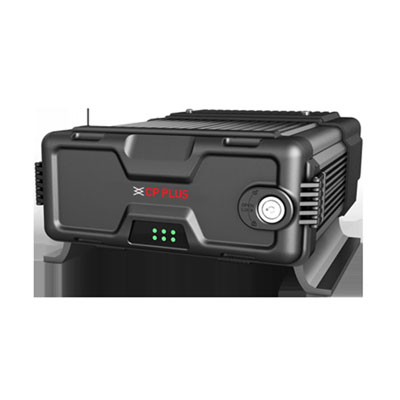

CP-SMR-H1608-S21-PG 16 Ch. WD1 + 8 Ch. 720P(IPC) H.264 Mobile DVR
- Supports 16 Channels WD1 + 8 Channels IPC (720P)
- Supports 360 degree anti-vibration
- Supports GPS for location tracking
- Supports SD card for mirror recording
- Supports Hard Disk for main recording
- Supports USB2.0
- Pre-recording max. 60 mins
Compare
Based on 0 reviews
Be the first to review “CP-SMR-H1608-S21-PG 16 Ch. WD1 + 8 Ch. 720P(IPC) H.264 Mobile DVR”
Related products
-
Mobile Digital Video, Mobile Surveillance
CP-SMR-H0402-S11-PG 4 Ch. WD1 + 2 Ch. 720P H.264 Mobile DVR
Mobile Digital Video, Mobile SurveillanceCP-SMR-H0402-S11-PG 4 Ch. WD1 + 2 Ch. 720P H.264 Mobile DVR
- Supports 4 channels WD1 + 2 channels 720P
- Supports Hard Disk for main recording
- Supports GPS for location tracking
- Supports SD card for mirror recording
- Built-in 3G/4G for live view and remote management
- Supports USB2.0
- Pre-recording max. 60 mins
- Supports data recovery technology
SKU: n/a -
Body Worn Camera, Mobile Surveillance
CP-EBP-G20-PGW 2 MP Full HD Body Worn Camera
- Angle of View 130 Degree
- 2MP High Definition Recording
- H.264 and MJPEG dual-stream encoding
- Built-in GPS/WIFI/4G-LTE Supported
- Live video and two way audio supported
- Support SMS Sending, voice broadcast
- LCD: 2.0″ Display
- Bluetooth 4.0 supported
- IP67
- Support Replaceable Battery
SKU: n/a -
Mobile Digital Video, Mobile Surveillance
CP-SMR-H0804-S11-P 8 Ch. WD1 + 4 Ch. 720P(IPC) / (WD1) H.264 Mobile DVR
Mobile Digital Video, Mobile SurveillanceCP-SMR-H0804-S11-P 8 Ch. WD1 + 4 Ch. 720P(IPC) / (WD1) H.264 Mobile DVR
- Supports 8 channels WD1+4 channels IPC (720P) or 4 channels WD1+8 channels IPC (720P)
- Supports Hard Disk for main recording
- Supports 360 degree anti-vibration
- Supports GPS for location tracking
- Supports SD card for mirror recording
- Supports USB2.0
- Supports Built-in heater (optional)
- Pre-recording max. 60 mins
- Built-in G-sensor
SKU: n/a -
Mobile Camera, Mobile Surveillance

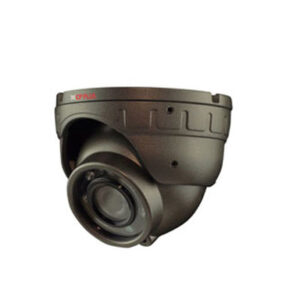

CP-SC-D10L1-V 1MP AHD IR Mobile Camera – 10 Mtr.
