- Operating SystemLinux 3.0.8
- Control ModeEasy Check, IR Remote Control, Network, Mouse
- Video SystemsElectrical level: 1Vpp Impedance : 75O NTSC/PAL Optional
- Total Resource(4 x 25)FPS WD1 @ PAL / (4 x 30)FPS WD1 @ NTSC +(2 x 30)FPS 720P
- ResolutionAnalog: PAL: WD1, WHD1, WCIF, D1, HD1, CIF, NTSC, WD1, WHD1, WCIF, D1, HD1, CIF; Digital: 720P
- Video Input4 channels WD1+2 channels 720P
- Video Output1 channels
- Recording ModeBoot up/Manual/Schedule/Alarm (sensor trigger, speed, acceleration, video loss, temperature)
- Audio Input6 channels (Including IPC x 2)
- Audio Output1 channels
- Pre-recording0~60 munites
- Post-recording0-30 minutes
- GPSLocation tracking, speed detection and time sync
- OSDGPS information, alarm, vehicle No., speed, date/time
- Image Quality1-8 levels adjustable (1 is the best)
- Mirror Recordingsupports
- Playback1 channel by local playback
- Sensors8 Inputs, 2 Outputs
- Search ModeDate/time, channel, event
- USBUSB 2.0 × 2
- EthernetRJ45 port (10/100M)
- Storage2.5″ SATA hard disk x 1(Up to 2 TB)
- Serial PortsRS232 × 2 / RS485 × 2
- Power InputDC8-36V
- Power Output12V@1A, 5V@1A
- Dimension (WHD)255.3mm x 150mm x 89.1mm
- Weight2.2Kg.
- Operating Temperature-40°C- +70°C(With heater) or -10°C- +70°C
- Relatively Operating Humidity8%~90%(no Condence)
- CertificationsCE, FCC
Mobile Digital Video, Mobile Surveillance

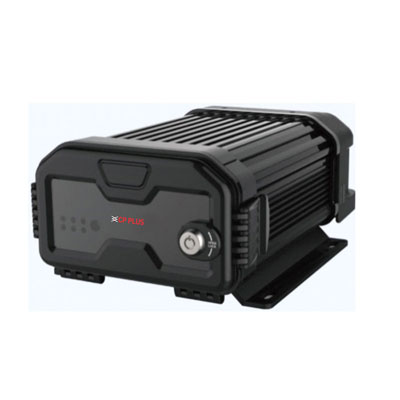

CP-SMR-H0402-S11-PG 4 Ch. WD1 + 2 Ch. 720P H.264 Mobile DVR
- Supports 4 channels WD1 + 2 channels 720P
- Supports Hard Disk for main recording
- Supports GPS for location tracking
- Supports SD card for mirror recording
- Built-in 3G/4G for live view and remote management
- Supports USB2.0
- Pre-recording max. 60 mins
- Supports data recovery technology
