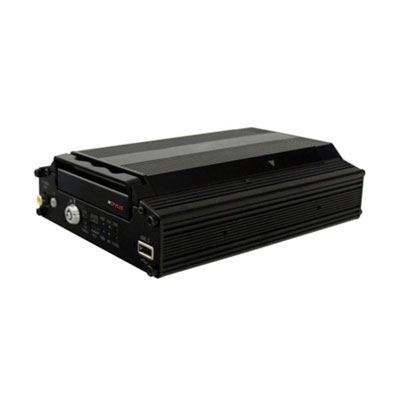

CP-SMR-H0401-S10-P 4 Ch. AHD + 1 Ch. 720p H.264 Mobile DVR

CP Plus
Add to wishlist
Compare
  • Supports 4 channels AHD + 1 channels 720P
  • Supports Hard disk for main recording
  • Supports GPS for location tracking
  • Vibration-resistant design to meet various environment needs.
  • Supports USB2.0 high speed backup
  • Pre-recording max. 60 mins
  • Tamper-proof watermarks
  • Modular design for easy maintenance

Compare
  • Operating SystemLinux 3.0.8
  • Control ModeEasy Check
  • Video SystemsElectrical level: 1Vpp Impedance : 75O NTSC/PAL Optional
  • Total ResourcePAL: (4×25)fps WD1+30fps 720P(IPC) Or (4×12)fps 720P(AHD)+30fps 720P(IPC) NTSC: (4×30)fps WD1 +30fps 720P (4×15)fps 720P(AHD)+30fps 720P(IPC)
  • ResolutionAnalog: PAL: WD1, WHD1, WCIF, D1, HD1, CIF, NTSC, WD1, WHD1, WCIF, D1, HD1, CIF; Digital: 720P
  • Video Input4 channels WD1+1 channel 720P
  • Video Output1 channels
  • Recording ModeBoot up/Manual/Schedule/Alarm
  • Audio Input5channels (1 channel IPC audio input)
  • Audio Output1 channels
  • Pre-recording0~60 munites
  • Post-recording0-30 minutes
  • GPSLocation tracking, speed detection and time sync
  • OSDGPS information, alarm, vehicle No., speed, date/time
  • Image Quality1-8 levels adjustable (1 is the best)
  • Sensors8 Inputs, 2 Outputs
  • Search ModeDate/time, channel, event
  • USBUSB 2.0 × 1
  • Hard Disk2.5″ SATA HDD
  • Mic1 MIC interface
  • Ethernet6-pin DJ(100M x 1, PON power supply)
  • Serial PortsRS232 × 1
  • Power InputDC8-36V
  • Power Output5V@1A
  • Power Consumption32W
  • Dimension (WHD)206mm × 190mm × 70.4mm
  • Weight1.24Kg.
  • Operating Temperature-40°C- +70°C(With heater) or -10°C- +70°C
  • Relatively Operating Humidity8%~90%(no Condence)
  • CertificationsCE, FCC
