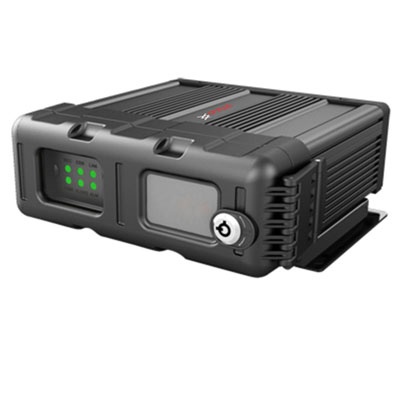

CP-SMR-H0401-S02-PG 4 Ch. WD1 + 1 Ch. 720P H.264 Mobile DVR

CP Plus
Add to wishlist
Compare
  • Supports 4 channels WD1 + 1 channels 720P
  • Supports SD Card for main recording
  • Built-in 3G/4G for live view and remote management
  • Supports GPS for location tracking
  • Supports 360 degree anti-vibration
  • Supports data recovery technology
  • Supports USB2.0 high speed backup
  • Pre-recording max. 60 mins
  • Tamper-proof watermarks
  • Modular design for easy maintenance

Compare
  • Operating SystemLinux 3.0.8
  • Control ModeEasy Check
  • Video SystemsElectrical level: 1Vpp Impedance : 75O NTSC/PAL Optional
  • Total ResourcePAL: (4×25)fps WD1+30fps 720P(IPC) Or (4×12)fps 720P(AHD)+30fps 720P(IPC) NTSC: (4×30)fps WD1 +30fps 720P (4×15)fps 720P(AHD)+30fps 720P(IPC)
  • ResolutionAnalog: PAL: WD1, WHD1, WCIF, D1, HD1, CIF, NTSC: WD1, WHD1, WCIF, D1, HD1, CIF; Digital: 720P
  • Video Input4 channels WD1+1 channel 720P
  • Video Output1 channels
  • Recording ModeBoot up/Manual/Schedule/Alarm
  • Audio Input5channels (1 channel IPC audio input)
  • Audio Output1 channels
  • Pre-recording0~60 munites
  • Post-recording0-30 minutes
  • GPSLocation tracking, speed detection and time sync
  • OSDGPS information, alarm, vehicle No., speed, date/time
  • Image Quality1-8 levels adjustable (1 is the best)
  • Mirror Recordingsupports
  • Sensors8 Inputs, 2 Outputs
  • Search ModeDate/time, channel, event
  • USBUSB 2.0 × 1
  • Mic1 MIC interface
  • Ethernet6-pin DJ(100M x 1, PON power supply)
  • StorageSD Card x 2, Up to 128GB each slot
  • Serial PortsRS232 × 1
  • Power InputDC8-36V
  • Power Output5V@500mA
  • Power Consumption29W
  • Dimension (WHD)167.3mm x 146.3 mm x 54.1mm
  • Weight0.83Kg.
  • Operating Temperature-40°C- +70°C
  • Relatively Operating Humidity8%~90%(no Condence)
  • CertificationsCE, FCC
